Abraxio's management schedule is based on working days (Monday to Friday). A public holiday schedule is standard in Abraxio. You must therefore select dates corresponding to working days. You will be alerted if this is not th

e case.

Composition of the Gantt Planning

1. Lot: lots are used to represent complex projects made up of several lots. They work like phases but can only exist at the 1st level of the object hierarchy.
2. Phase: phases represent Project phases (Design, Implementation, etc.). They can exist at the 1st level, under lots or can be nested (sub-phases).
3. Activity: activities represent tasks/actions to be carried out by players (e.g. "Drafting general specifications").

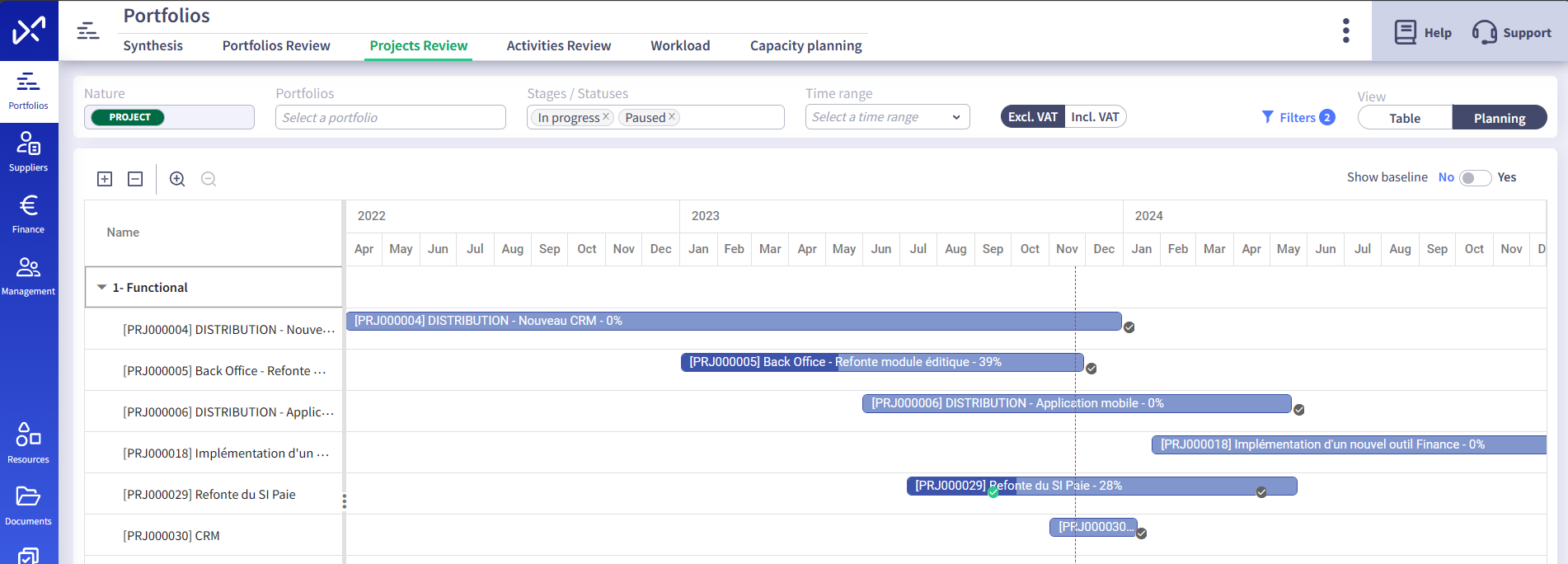

4. Milestone: milestones correspond to a key date in the Project (e.g. a deliverable, a validation instance, etc.). They can be called "Commissioning" to mark important milestones in the completion of the Project. These Commissioning Milestones are represented in the Summary View of the schedule and in the Gantt Planning of the Project portfolio.

If you want to manage macro-planning suitable for the Project portfolio, use Lots, Phases and Commissioning Milestones.

If you want to manage a detailed schedule, use Activities and Milestones.

In addition, Abraxio manages :

1. Links/dependencies between objects
2. Progress


Initialising the schedule

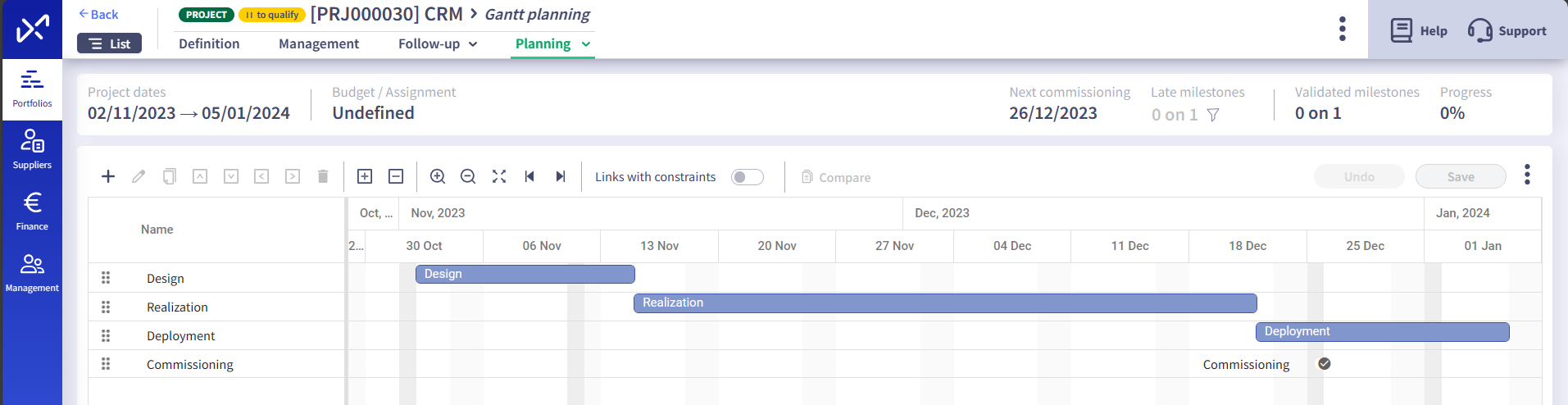

1. Empty : a single Phase will be created automatically based on the Project start and finish dates.
2. From a template : based on the Project start and end dates, Abraxio will automatically create a Design Phase, a Realisation Phase, a Deployment Phase and a Commissioning Milestone.
3. From a copy of an existing project : after selecting the project to copy, Abraxio will automatically copy the Gantt Planning, starting it at the defined project start date.

When you copy an existing schedule to start your new Gantt on a new time frame, the schedule is automatically scaled.

Schedule editing

Access



Header

1. Stage / Project Status
2. Project dates: start and finish dates defined by the Gantt Planning and updated automatically.
3. Budget / Staffing: budget Scheduling for the Project. If this is not defined or is not between the Project dates, Abraxio alerts by turning red.
4. Next Commissioning : date of the first Commissioning Milestone not met. If this date has passed, Abraxio alerts you by turning this indicator red. You must then either validate the Milestone if it has been reached, or reschedule it.
5. Milestones overdue: number of milestones not reached with a date in the past.
6. Milestones validated: number of milestones reached.
7. % Progress : each lowest level object (leaf) in the Gantt defines a duration in days and a percentage of progress. Overall progress is equal to the sum of the object durations x their % progress divided by the sum of the object durations.

Utility Bar



1. Add : create a Lot, Phase, Activity or Milestone. Opens the popup for defining the object to be created.
2. Edit : edit the selected Lot, Phase, Activity or Milestone. Opens the popup window for editing the selected object.
3. Move Up/Down: allows you to manage the order of objects in the Gantt. Select the object you want to move, then move it up or down.

4. Raise level: allows you to make the selected object the child of the object of the same level above it.
5. Decrease level : changes the selected object to the same level as its parent.

6. Delete: deletes the selected object. Note that if the object has children, they will also be deleted.
7. Detailed view: : increases the zoom level.
8. Synthetic view : folds the Gantt object tree to obtain a synthetic view.
9. Detailed view : unfolds the Gantt object tree to view all the objects.
10. Zoom in : increases the zoom level to work on part of the schedule.
11. Zoom out: decreases the zoom level.
12. Auto-fit : adjusts the zoom level automatically to view the schedule from start to finish.
13. Expand left: increases the workspace to add objects before the project start date.
14. Expand right: increases the workspace for adding objects after the project end date.

15. Undo : cancels the last actions (up to a limit of 10 actions). This action works with the CTRL+Z shortcut.

16. Redo : restores the last actions (up to a limit of 10 actions). This action works with the CTRL+Y shortcut.
17. Links with constraints: allows you to define whether you wish to keep the delay carried by the links when moving an object. When a Gantt Planning is initialised, this parameter takes the standard value from your organisation's configuration.

To configure the Portfolios module, click here : Portfolios module configuration (abraxio.com)

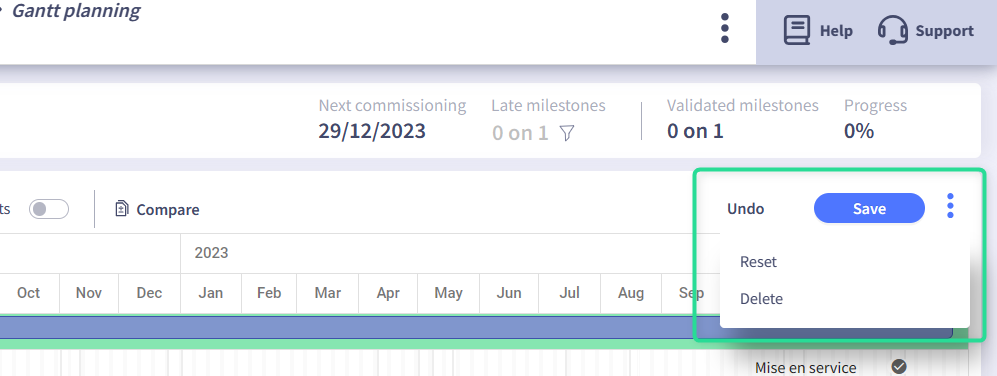

1. Reset : this function allows you to reset your schedule by starting from 0. As long as you have not saved, you will be able to go back.
2. Delete : deletes the current schedule and redirects you to the schedule initialisation screen.
3. Undo : cancels the current modifications and returns to the last saved state.
4. Save: saves the Gantt Planning.

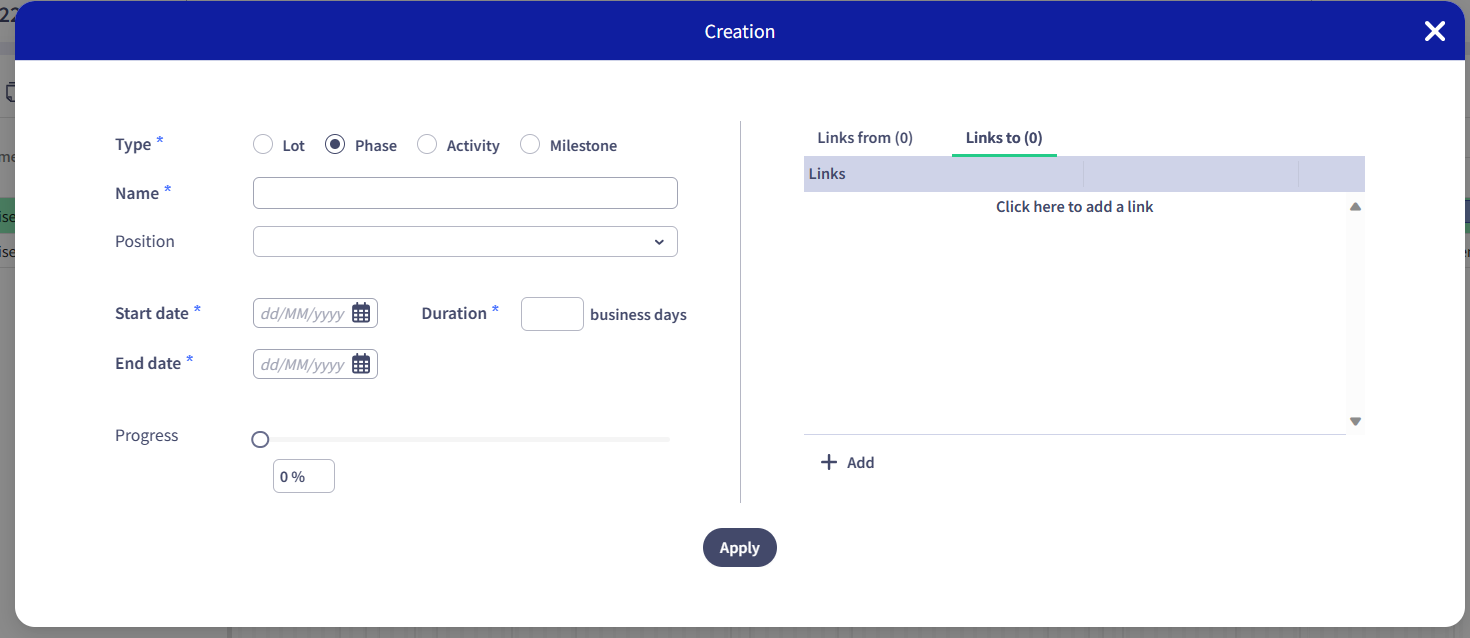

Creating-Editing a Lot/Phase/Activity

1. Type : select the type of object to create
2. Name : fill in the name of the object
3. Position : optional. Select the object that will be the parent of the one being created/edited. Note: this function is not available for batches, as they cannot have a parent.
4. Start date: Enter the start date
5. Duration or End date: enter either the duration in working days or the end date
6. Progress : define the object's progress. Note that this function is only available for objects that have no children. Parents automatically consolidate their children's progress.
7. Links to / Links from : Define the links and delays between this object and other objects. More details below.

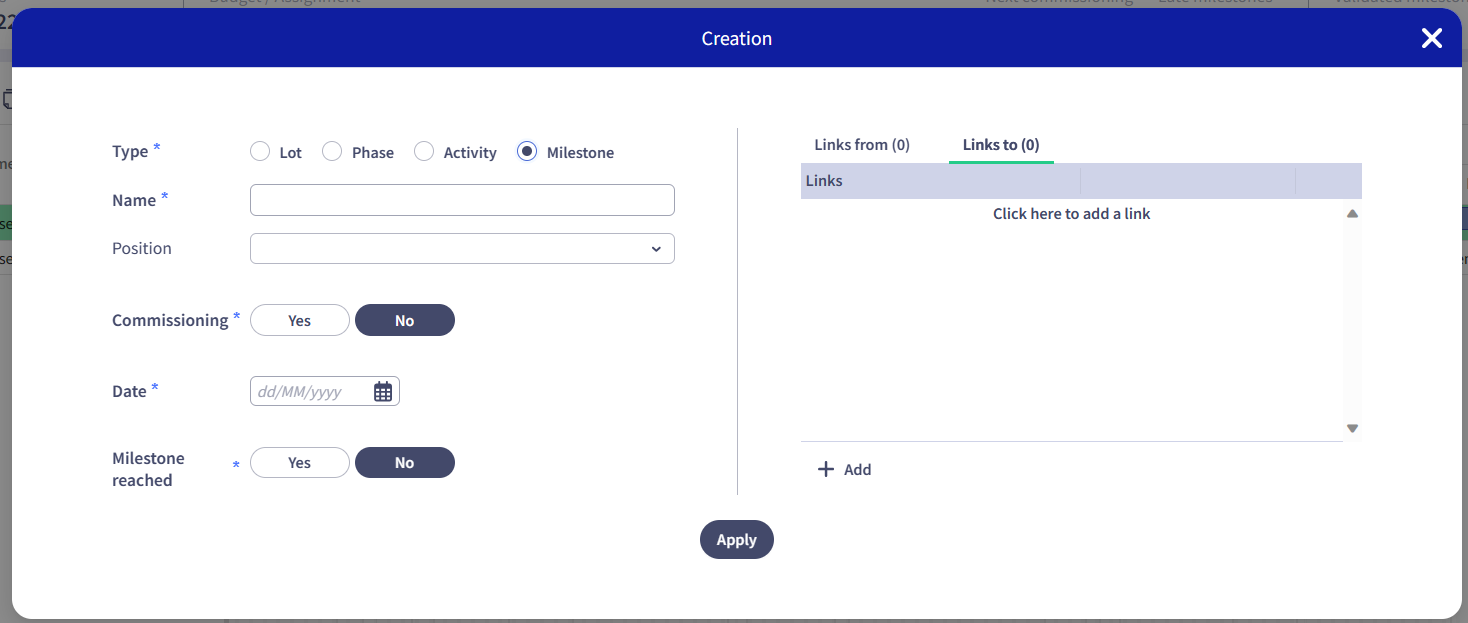

Creating and editing a Milestone

The creation of an object is initiated from the "+" utility bar.

Modifying an object is initiated from the utilities bar or by double-clicking on a Gantt line.

The Milestone popup is specialised for this type of object and displays the following information:



1. Type : Milestone

2. Name: fill in the name of the Milestone
3. Commissioning: define whether the Milestone is of a "Commissioning" nature, i.e. the project result is made available (e.g. production start). This marking is used to highlight important Milestones in the summary views.
4. Date: Enter the date of the Milestone
5. Milestone reached: define the progress of the milestone

Creating-Editing a link

1. Links : create/modify/delete links between objects:
1. There are 2 tabs to choose from, depending on the way you work:
1. Links from: the link starts from another object and arrives at the object currently being edited
2. Links to: the link starts from the object currently being edited and ends at the designated object.
2. Select the source or target object of the link

3. Select the type of link
4. Define the value of the link in days if you have enabled constraints



            Illustration of the operation of links with or without constraints in the Gantt Planning for a Project

Interactive modification

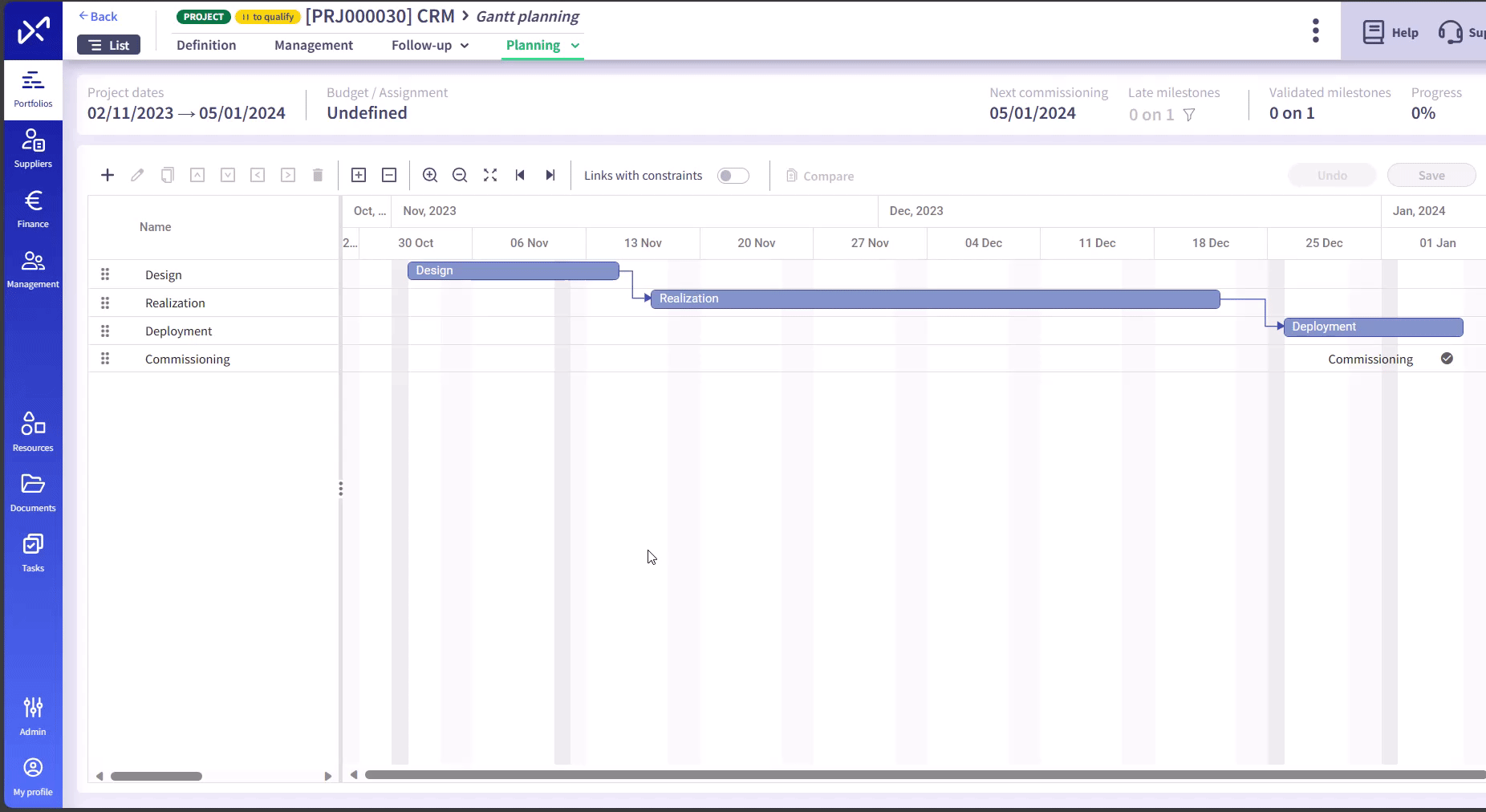

A wide range of operations can be carried out directly in the Gantt using the mouse:

1. Changing values in the left-hand columns of the Gantt: name, start date, end date, etc.
2. Modify dates by extending or reducing the horizontal bars for Lots, Phases and Activities.
3. Shift the schedule by moving the horizontal bars
4. Change the progress by moving the cursor under the horizontal bars
5. Create links between objects by selecting the start anchor and releasing on the finish anchor

Schedule comparison

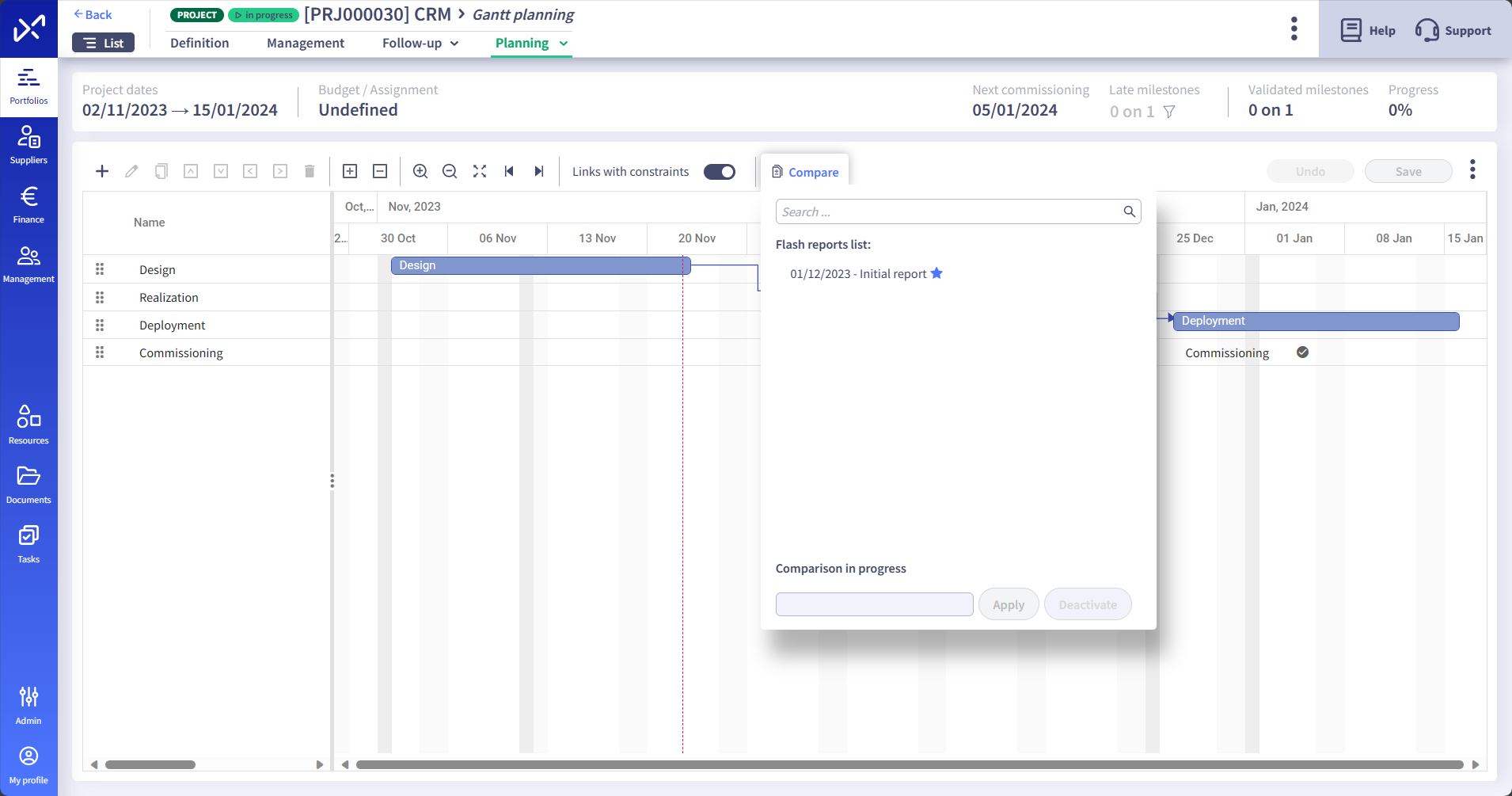

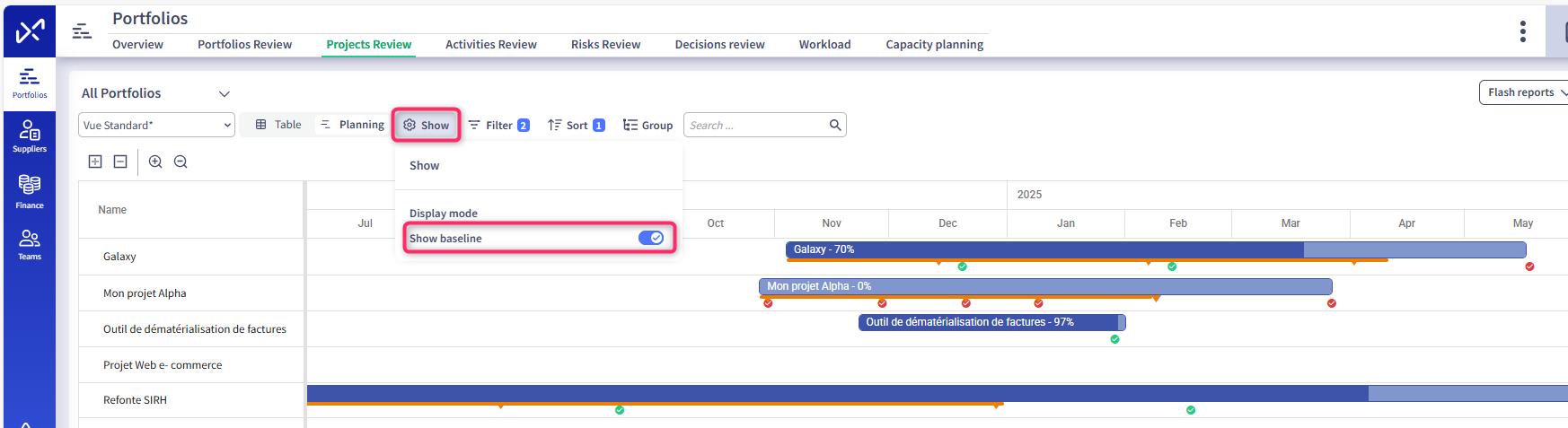

A schedule comparison feature is available in the Gantt utility bar. This allows you to compare your current schedule with a schedule stored in a flash report.

Click on Compare, select a flash report and then click on Apply.

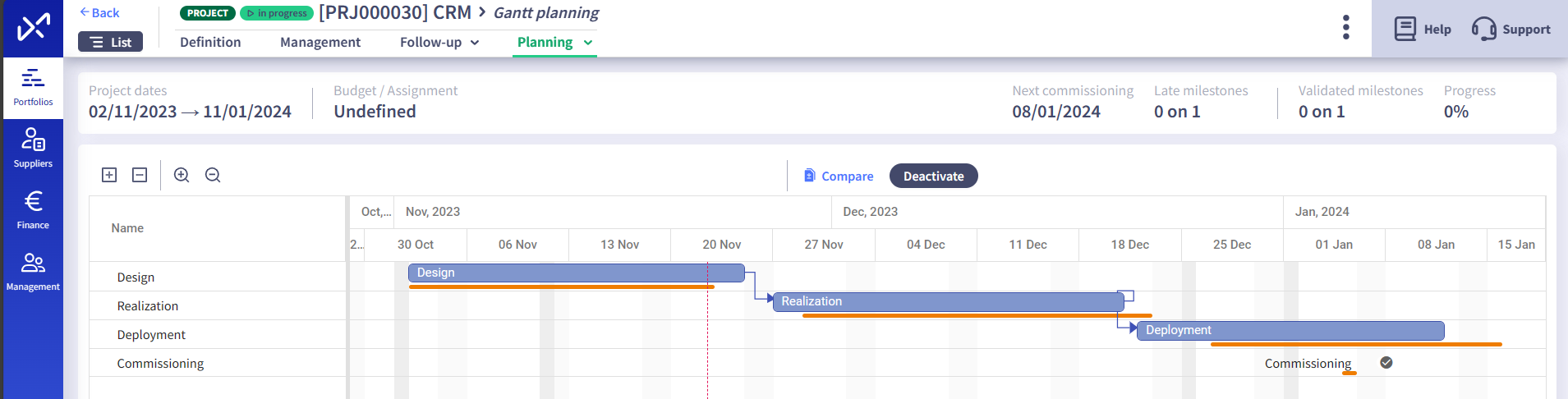

1. its schedule, based on start/end dates
2. its progress in % and visually
3. its Commissioning Milestones:
2. in red when they are late
3. in black when they have not been reached
4. in green when they have been reached

Exporting schedule

1. Planning : lots, phases and activities
2. Milestones : milestones
